Rural health facilities often face the same responsibility as large urban hospitals — to store vaccines safely and keep them potent until use. Yet, they must do so with limited or unstable electricity, minimal maintenance resources, and strict budgets. That’s where an Ice-lined passive storage device becomes an essential part of the vaccine cold chain. In this guide, Aucma Co., Ltd. — a global refrigeration expert with more than three decades of innovation — provides a complete, step-by-step approach to help health bureaus, project managers, and clinic procurement teams select the right model based on technical specifications, usability, total cost, and long-term performance.
Before comparing models, decision-makers need to understand how several key technical parameters determine whether a storage unit will truly meet field requirements. The most important are capacity, holdover time, power characteristics, and temperature monitoring options.
Not every liter of internal space translates directly into usable vaccine volume. In an ice lined vaccine refrigerator, part of the space is reserved for the ice lining, insulation, and airflow clearance. Aucma’s engineering team recommends estimating capacity based on the actual number of vaccine vials you expect to store during your busiest immunization period.
A practical approach is to calculate total vaccine volume, then multiply by 1.3 to 1.5 to account for packaging and cold air circulation. For example, if your rural clinic handles vaccines for seasonal campaigns or multiple programs (EPI, polio, measles, etc.), choosing a slightly higher capacity ensures stable operation and reduces the risk of overloading. Selecting a model with clear labeling of usable vaccine storage volume rather than gross volume helps avoid capacity misjudgment.
Holdover time refers to how long the device can maintain the safe vaccine temperature range (typically +2°C to +8°C) after power loss. In regions with intermittent electricity — common in remote areas — this is perhaps the most critical factor.

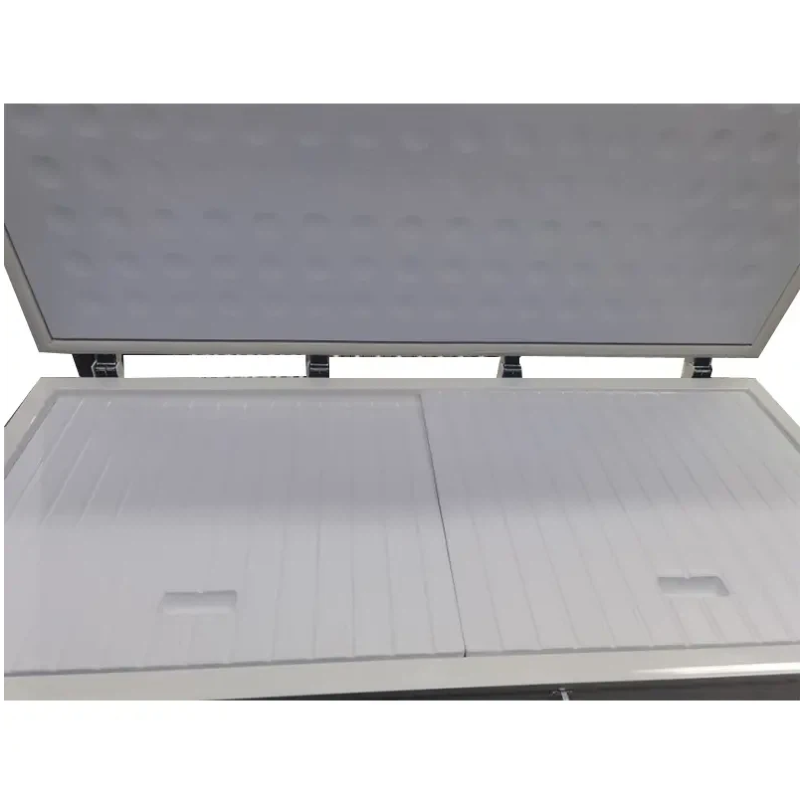

An Ice-lined passive storage device equipped with thick phase-change ice linings can maintain internal temperature for more than 72 hours after power outage, depending on ambient conditions. Procurement teams should consider the typical outage length and frequency at the installation site. Aucma’s units, designed with optimized thermal mass and insulation, extend holdover duration without adding unnecessary size, balancing practicality and reliability. The rule of thumb: longer holdover time equals greater protection against vaccine spoilage, but also slightly higher initial cost and weight.
Some models use built-in compressors to freeze the lining during power availability, while others require a separate freezer for ice-pack preparation. Understanding your local infrastructure is vital.
If your clinic has short but predictable electricity windows, choose a self-contained model with automatic freeze cycles and low power draw — ideally able to operate on variable voltage or solar hybrid input. Aucma’s power systems include stabilizers and energy-efficient compressors to ensure reliable performance even under voltage fluctuations common in rural grids.
For completely off-grid sites, pairing a solar direct-drive refrigerator with an external ice bank may be more cost-effective, though this setup requires more planning and initial investment.
Even the most advanced unit is only as reliable as its temperature monitoring. Modern vaccine refrigerators come with built-in data loggers or external probes for remote supervision.
Procurement officers should prioritize models offering continuous temperature recording, alarm notifications, and USB or cloud-based data export. Aucma provides both integrated and optional monitoring systems compliant with WHO and CDC vaccine storage recommendations, making validation and reporting easier during audits.
Once you understand the specifications, the next step is comparing design differences between models. Each design choice affects efficiency, usability, and maintenance requirements.
There are two main ice-based cooling systems: integrated ice linings and removable ice packs. Integrated linings freeze during the compressor’s run cycle and slowly release cooling energy during power cuts — offering stability and minimal handling. Removable packs, on the other hand, can be refrozen separately and replaced, which allows flexibility but requires additional labor.
For fixed clinic use, internal ice mass designs are typically superior in reliability and lower maintenance. Aucma’s internal ice-lining technology ensures uniform cooling distribution, minimizing temperature gradients and eliminating cold spots that risk freezing vaccines.
The door design influences both convenience and thermal retention. Top-opening lids reduce cold air loss during access, while front-opening designs allow easier organization and faster retrieval.
In high-temperature regions, insulation thickness and material density are equally important. Aucma uses high-pressure polyurethane foam insulation with multi-layer sealing gaskets, ensuring maximum energy efficiency and temperature stability even when ambient temperatures exceed 40°C.
When comparing models, request insulation performance data such as K-value or thermal conductivity index — this indicates how well the refrigerator can resist heat transfer and maintain internal stability.
One of the most reliable indicators of product quality is international certification. Always verify whether the model has WHO PQS prequalification, which guarantees that it meets UN agency standards for vaccine storage. Aucma’s medical refrigeration range complies with WHO PQS standards and is used globally by public health agencies and NGOs.
Equally important are warranty terms and after-sales service coverage. In rural settings, downtime directly threatens vaccination programs. That’s why Aucma maintains a strong service network and offers extended warranty options with guaranteed spare parts availability — ensuring operational continuity over many years.
When comparing prices, the initial purchase cost is only one part of the equation. To make a sustainable investment, procurement teams should evaluate total cost of ownership over three to five years, including energy consumption, maintenance, spare parts, and potential losses from vaccine spoilage.
While lower-cost models may seem attractive upfront, they can consume significantly more power over time or fail to maintain temperature during outages. Energy-efficient compressors, high-quality insulation, and smart temperature control can reduce operational costs dramatically. Aucma’s advanced cooling systems are engineered to lower energy consumption without compromising performance — an advantage that quickly offsets the initial price difference.
Plan for regular maintenance such as cleaning condenser coils, checking seals, and verifying temperature accuracy. Choose manufacturers that guarantee spare parts availability and provide user manuals in local languages. Aucma supplies comprehensive maintenance kits and global technical documentation support to facilitate field servicing by local technicians.
Perhaps the most overlooked factor is the financial impact of vaccine wastage. Each spoiled vial represents both financial loss and reduced immunization coverage. By choosing a PQS-certified ice lined vaccine refrigerator with proven temperature reliability, procurement officers can demonstrate measurable cost savings to donors and funding partners through reduced wastage rates.
To simplify the purchasing process, here is a checklist and example RFP structure you can adapt for your next tender or evaluation.
WHO PQS prequalified or equivalent certification
Net usable vaccine volume clearly specified
Holdover time ≥72 hours at +43°C ambient temperature
Temperature range maintained between +2°C and +8°C
Integrated or external data logger with 30-day recording capacity
Manufacturer must provide installation and operation manual in English
Local service partner with response time ≤72 hours
Spare parts availability for at least 5 years after purchase
Warranty coverage of minimum 24 months for compressor and cooling system
Upon delivery, clinics should perform on-site validation tests including:
Temperature mapping at different loading levels
Holdover verification under power-off conditions
Door-opening recovery test to ensure temperature stability
Calibration of monitoring instruments
These practical clauses make it easier to write performance-based specifications that ensure value for money and long-term reliability.
After procurement, correct installation and validation guarantee the equipment will perform as expected.
Select a well-ventilated area away from direct sunlight or heat sources. Allow sufficient clearance around the unit for air circulation. Level the device to ensure proper door sealing and compressor operation.
Before loading vaccines, run a 24-hour test operation with temperature recording to confirm stability within the +2°C to +8°C range. Personnel should receive training on daily monitoring, alarm interpretation, and preventive maintenance. Following WHO and CDC guidelines, staff should log temperatures twice daily and verify data logger records weekly.
Aucma provides commissioning and user training support to ensure smooth startup and long-term compliance with vaccine storage standards.
Choosing the right Ice-lined passive storage device for rural clinics is more than a technical decision — it is a commitment to vaccine safety and public health. By focusing on practical parameters like holdover time, insulation performance, certification, and total cost of ownership, health departments and project coordinators can make confident, evidence-based investments. Aucma Co., Ltd., with its decades of experience in global cold chain solutions, offers a complete line of PQS-approved models ready for deployment in challenging environments. To explore our full range of ice lined vaccine refrigerator solutions or request a detailed specification sheet, contact us today.
1. What makes an ice-lined passive storage device suitable for rural clinics?
It combines energy-efficient cooling with long holdover time, ensuring safe vaccine storage even during extended power outages — critical for remote or off-grid areas.
2. How often should the ice lining or freezer cycle be checked?
Routine checks every two to three weeks are recommended to ensure proper ice formation and optimal holdover performance, as per manufacturer guidelines.
3. Why is WHO PQS certification important for vaccine refrigerators?
PQS certification ensures the device meets international standards for vaccine safety, temperature stability, and reliability, qualifying it for public health programs and donor-funded projects.
4. Can Aucma units integrate with solar power systems?
Yes. Many Aucma ice-lined and solar direct-drive models can operate on hybrid power input, offering reliable performance for clinics with unstable electricity supply.
