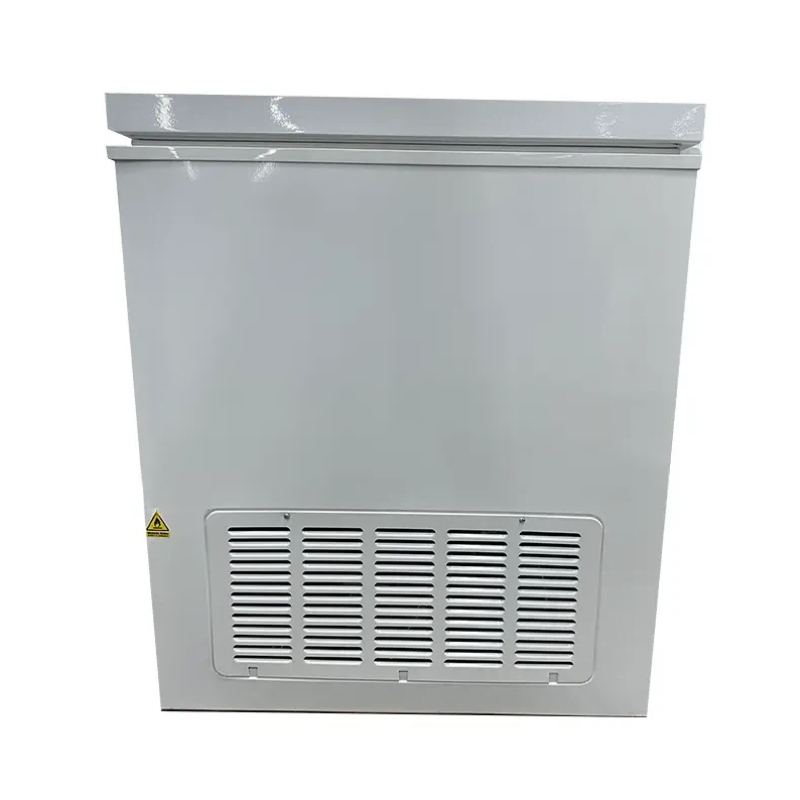

Vaccine wastage is driven by temperature excursions, unexpected power outages, and operator errors. For frontline cold-chain and vaccine program managers, pairing the right equipment with disciplined operations is the most reliable path to reducing wasted doses. This article explains how an Ice-lined passive storage device combined with strong SOPs, monitoring, training, and reporting can materially lower vaccine loss and improve immunization coverage. Aucma Co., Ltd. supplies a range of purpose-built solutions and practical guidance for implementing these measures in the field.
Ice-lined vaccine refrigerators use a thick thermal mass of frozen ice or phase-change material around the vaccine compartment to provide thermal inertia. That thermal buffer delivers three operational advantages for vaccine preservation.
Thermal inertia for stability
The large frozen mass slows temperature change when ambient or internal conditions shift. Short, frequent door openings or small compressor cycles will not produce rapid temperature swings. That means vaccines remain within the target temperature band for longer even when systems are stressed.
Freeze-buffering during outages
When utility power fails, the ice mass releases cold energy slowly. Holdover time refers to how long the internal temperature stays within safe limits after power loss. Well-designed ice-lined units provide measured holdover performance that is predictable and auditable. Planning around documented holdover times minimizes the chance that vaccines are left exposed during outages.
Consistent temperature-band maintenance
By design, ILRs promote narrow temperature band operation. Compressors run less frequently, and temperature fluctuations are dampened. Consistent operation reduces both heat and inadvertent freezing risk, protecting vaccine potency and extending usable life.
Operational tip: request the manufacturer’s holdover test report and integrate those holdover figures into your contingency plans and SOPs.
Even with an ice-lined design, human and process factors can produce excursions. Below are the common causes observed in field programs and practical SOP fixes you can implement immediately.
Cause: Excessive or prolonged door openings increase internal temperature and reduce holdover margin.
SOP fixes:
Define and display a “door policy” at each clinic: limit door openings to essential tasks, and batch vaccine retrievals into a single short session rather than repeated small openings.
Assign one trained operator per shift to manage stock retrieval.
Use a door-open alarm set to a conservative threshold and logged events reviewed weekly.
Cause: Over-stocking reduces air circulation and increases localized warming. Under-stocking increases the relative impact of each door opening and decreases thermal stability.
SOP fixes:
Implement a standardized packing density table for each ILR model that specifies maximum and recommended stocking configurations.
Use labeled trays and fixed shelf positions so staff always return vials to the same place.
Rotate stock using FEFO rules and perform weekly inventory reconciliations.
Cause: Ice packs or liners not fully refrozen before service reduce holdover capacity. Neglected ice packs may also leak or become contaminated.
SOP fixes:
Set clear refreeze cycles in the clinic schedule. Use a visible “refreeze complete” tag on each pack.
Maintain a spare set of fully frozen ice packs sized for the unit’s recommended refreeze interval.
Include ice pack integrity checks in daily visual inspection checklists.
Cause: Putting the unit in direct sunlight, near heat sources, or in cramped spaces impairs performance and increases compressor runtime.
SOP fixes:
Place ILRs in shaded, ventilated areas with at least manufacturer-recommended clearances.
Elevate units off uninsulated concrete floors and away from ceiling heat stratification.
Monitor ambient temperature near the unit and include these readings in weekly logs.
Accurate temperature monitoring transforms ILRs from “good idea” hardware into measurable, improvable systems.
Continuous temperature monitors provide the strongest protection. For best practice:
Use a continuous temperature monitoring system with a certified, calibrated probe placed at the coldest point where vaccines are stored.
Complement continuous systems with a secondary independent data logger for cross-checks.
Ensure devices are calibrated to an accepted standard and show calibration dates on the device.
Operational advice: continuous monitors with remote alerts reduce time-to-detect and time-to-respond for excursions, directly lowering wastage risk.
Collecting data is only useful when paired with disciplined analysis.
Key performance indicators to track: time-out-of-range measured in minutes, percentage of doses exposed, frequency of excursions, average holdover time during outages, and mean time to recovery after an event.
Run weekly trend analyses to detect patterns such as recurring door-open clusters or afternoon temperature drift.
Map excursions to operational events such as deliveries, outreach days, or known power instability windows. That mapping identifies whether the root cause is equipment, behavior, or environment.
Sample KPI definitions:
Time-out-of-range: cumulative minutes per month where internal temperature fell outside the safe band.
% doses at risk: number of vaccine doses potentially compromised divided by total doses stored.
Outage incidents: count of power losses longer than two minutes per month.
Holdover performance: measured minutes between power loss and first out-of-range event.
Use small data-led experiments. Change one operational variable, measure impact for 30 days, then decide whether to adopt the change permanently.
Equipment only performs as well as the people operating it. Effective, focused training and user-friendly SOPs produce consistent outcomes.
Daily checks:
Verify continuous monitor is online and probe properly placed.
Check and record unit internal temp at the start of day.
Inspect ice packs, seals, door gaskets, and ensure no visible condensation or frost in unusual patterns.
How to repack vaccines:
Follow the packing density table for your unit.
Place vials upright where applicable.
Use insulated trays during outreach removal and limit time outside the unit to a predefined maximum.
What to do during a power outage:
Immediately record the outage start time.
Minimize door openings.
Move critical vaccines to a pre-designated backup ILR or ice-lined transport box within the known holdover window.
Log action steps, time, and final temperature.
Simulated outages build confidence and reveal gaps.
Run quarterly tabletop exercises that simulate multi-day power failure scenarios, assign roles, and measure response times.
Conduct annual full-scale drills where staff move vaccines to backups within the holdover time.
Use standardized templates to record actions in drills and actual events. Templates should include time stamps, names, measured temperatures, actions taken, and outcomes.
To demonstrate value to funders and managers, quantify the benefits of ILRs combined with strengthened operations.
Wastage rate: number of doses discarded due to cold-chain failure divided by doses handled.
Outage incidents: count and duration of power interruptions.
Holdover performance: average minutes until first out-of-range after power loss.
Mean time to recovery: average time from excursion detection to corrective action completion.
Report header: facility, unit ID, reporting period, contact person.
Summary: high-level KPI snapshot and narrative of any incidents.
Detailed section: daily temperature chart, excursion log with root cause and corrective action.
Impact summary: estimated doses saved vs previous period, cost-equivalent of avoided wastage if available.
Action plan: training needs, maintenance actions scheduled, spare parts ordered.
Appendix: copies of continuous logger charts and incident templates.
Sample narrative paragraph for funders: “During the reporting period the facility recorded a reduction in time-out-of-range by X percent compared to the prior quarter, driven by revised door management SOPs and verified holdover performance of the ILR. No vaccines were discarded due to temperature excursions.”
When equipment design and operations align, vaccine wastage falls sharply. Combining a quality ice-lined design with disciplined SOPs, continuous monitoring, and focused staff training delivers reliable protection for vaccine potency and program budgets. Aucma Co., Ltd. provides field-proven ice-lined solutions and implementation support for cold-chain managers who need predictable holdover performance and operational tools to reduce waste. Contact us for a product demonstration and to request our free SOP template.
Q1: How long will vaccines stay safe in an ice-lined unit during a power outage?
A1: Holdover time depends on the specific unit model, the state of ice charge, and packing density. Consult the manufacturer’s holdover report and use that value in your outage SOPs. Regularly test and verify holdover under local conditions.
Q2: Which temperature monitoring setup is sufficient for compliance?
A2: Continuous temperature monitoring with remote alerting plus a secondary independent logger provides strong compliance posture. Place the primary probe at the coldest vaccine location and ensure regular calibration.
Q3: Can ILRs prevent vaccine freezing?
A3: Properly configured and packed ILRs reduce freeze risk because their large thermal mass moderates compressor cycles. However, incorrect packing or improper ice pack handling can still create frozen zones. Follow the packing density table and daily checks to avoid freezing.
Q4: What is the single most effective operational change to reduce wastage?
A4: Implementing a strict door management policy combined with audit logging typically yields the fastest measurable improvement. Train staff to batch retrievals and limit non-essential openings.
