TCD-188
Aucma
Solar Powered Combined Vaccine Refrigerator is used in vaccine storage, medicines and ice pack freezing, suitable for hospitals, CDC, and scientific research institutions, etc.

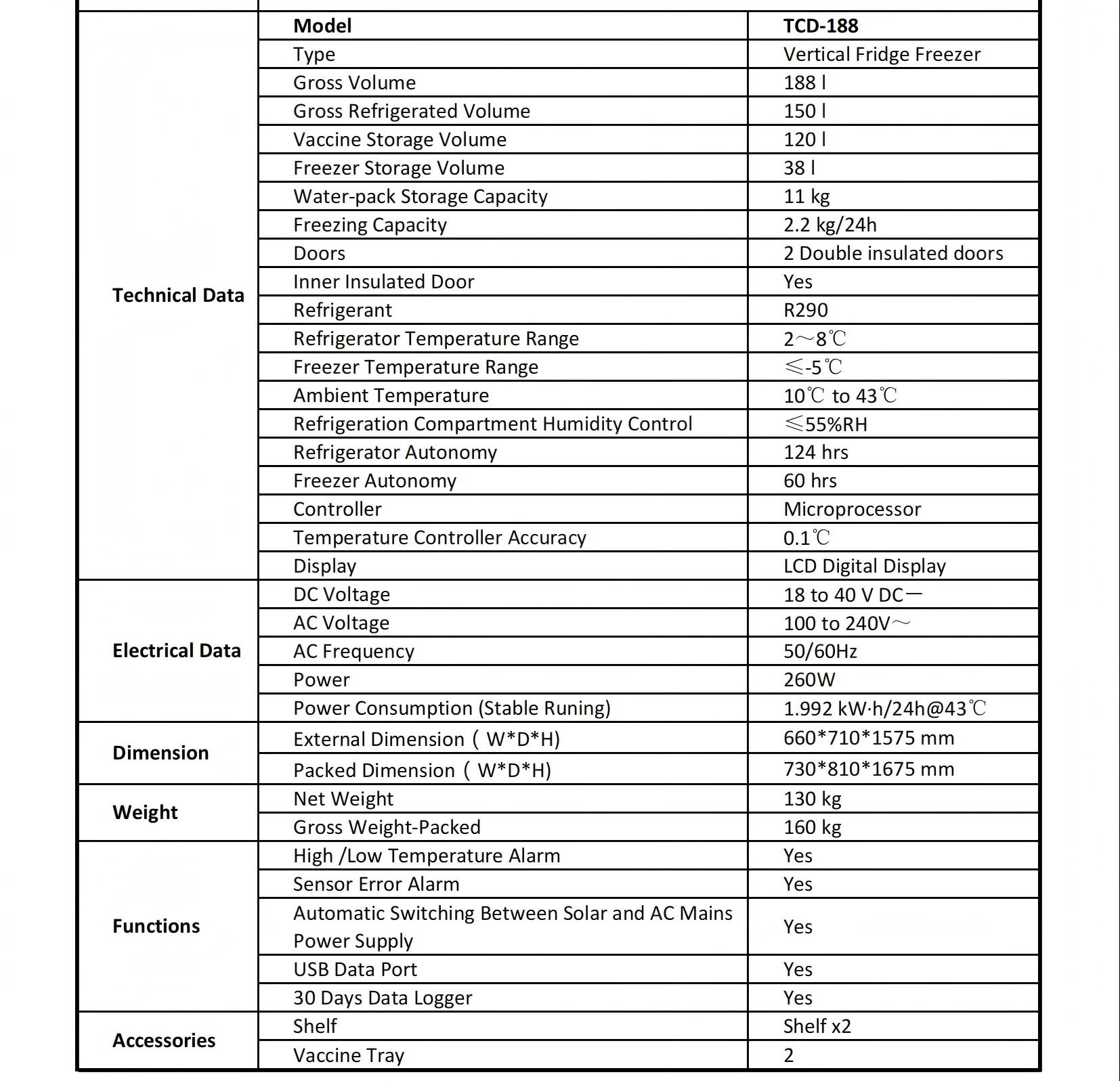

120L vaccine storage chamber volume; 38L water pack freeze chamber volume;
Grade A anti-freeze protection;
Side-opening for easy user access to vaccines and water packs;
The product has a built-in USB memory module, It can store temperature data for 10 years;
124 hours of holdover at constant ambient temperature of 43 °C ;
Refrigeration room humidity ≤ 55%;
2.2kg daily Water-pack freezing capacity, 11kg water-pack storage compartment capacity;
Query the daily maximum temperature and minimum temperature and alarm information in the past 30 days through the temperature control panel;
Inner cover design prevents the loss of cooling capacity
With USB charging interface, its electrical parameters is 5V / 0.5A;
Rated voltage range: 18-40V DC or 100V~240V AC;
First freezing time at 43 degrees loop temperature is 14 days;
10-years design maintenance life apart from routine defrosting, cleaning and solar array cleaning and shading prevention
Daily maintenance tasks
Confirm that the vaccine chamber is within acceptable temperature range (2°C to 8°C) and remaining holdover is at least 2 days. Ensure that door is fully closed and latched. Avoid unnecessary door openings.
Monthly maintenance tasks
Wipe down any condensation inside the vaccine chamber.
Remove any surrounding objects around the TCD-188 that might obstruct airflow.
Clean external condensers at the back of the TCD-188.
Clean both front and back compressor ventilation covers.
Clean vaccine chamber door inner and outer gaskets with a soft wet cloth to maintain flexibility and elasticity. Rub the door gasket with talcum powder to prolong its use. Check gaskets for any cracks or gaps that allow airflow through the door. Order spare parts and replace if necessary.
Annual maintenance tasks
Inspect water level to ensure that water reaches the bottom of the fill tube; top off with clean drinking water if needed. It is normal for ice to be present in the bottom of the fill tube.
WARRANTY PERIOD: From date of Bill of Loading, 3 YEARS FOR MAIN UNIT and SOLAR BOARDS, 5 YEARS FOR COMPRESSOR.
Free warranty coverage does not include the following cases:
(1) Damage caused by improper use or improper maintenance.
(2) Damage caused by attempted repairs done by a non-designated repair department.
(3) Damage caused by force majeure.
(4) Damage occurring after the warranty period has expired.
