1. Product Overview

Medical-grade refrigeration unit delivering ultra-precise 2°C–8°C temperature control for reagents, vaccines, and pharmaceuticals. Upgraded with intelligent IoT capabilities and energy-efficient engineering.

YC-696

YC-1146

YC-1286

YC-1506

2. Core Features

2.1 Advanced Temperature Management

• Dual Inverter Technology: ±0.1°C digital control + 39-44 dB ultra-quiet operation

• Carbon Hydrocarbon Refrigerant: 30% faster cooling & 40% energy savings

• Extended Compatibility: RS-485 interface [Optional] for custom integrations

2.2 Smart Connectivity

• IoT-Ready:

• Cloud data logging via WiFi [Optional]

• Real-time remote monitoring & alerts

• Data Security:

• USB/Printer [Optional] for permanent records

• Intuitive cloud dashboard

2.3 Proactive Safety Ecosystem

• 6 Core Alarms: High/low temp, sensor failure, door-open, power loss, low battery, remote alerts

• Upgraded Protections [Optional]:

• Condenser blockage alarm

• Ambient overheating alert

• IoT anomaly notification

• Secure Access: NFC + mechanical lock + anti-tamper design

2.4 Human-Centric Engineering

• Auto-Close Door: Heated glass with 90°-110° hinge suspension

• Flexible Organization: Modular shelving with slide-out trays

• Universal Power: 100-240V wide-voltage operation

• Zero-Fog Visibility: Electrically heated glass door

3. Technical Highlights

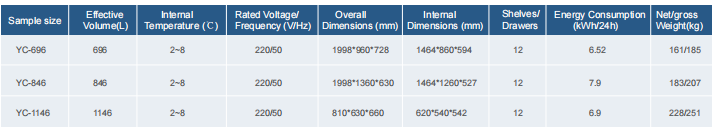

4. Data Sheet
