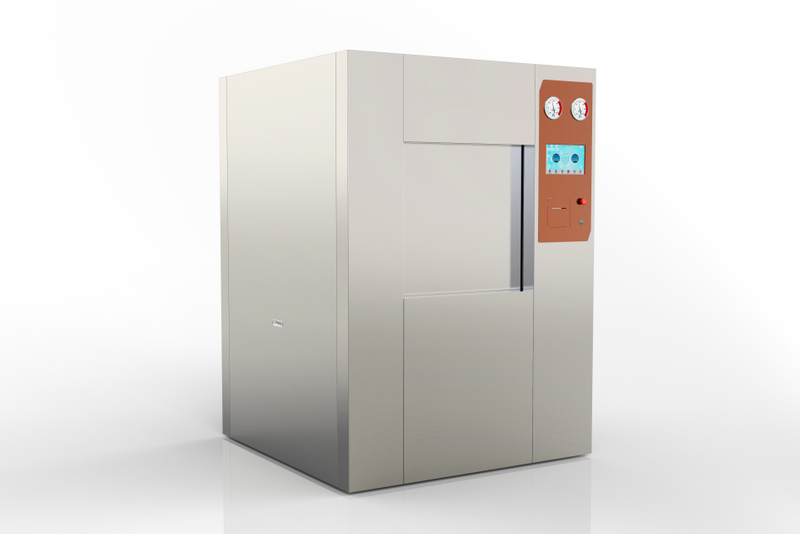

PVS·SJ-600S
AUCMA
Pulse vacuum sterilizer technical parameters
Mainly used in hospital disinfection supply room, third-party disinfection supply center, operating room, laboratory, pharmaceutical factory to sterilize instruments, dressings, rubber, lumen instruments, implantable instruments and liquids.
Item | Technical parameter | Design specifications |
1 | container design life | The chamber S30408, the jacket Q245R has a lifespan of 10 years (20,000 sterilization cycles). |
2* | Inner chamber design pressure | -0.1~0.3MPa |
3* | Jacket Design Pressure | 0.3MPa |
4 | Built-in steam generator (optional) | 0.3 MPa |
5 | set temperature | 150℃ |
6 | maximum operating temperature | 138℃ |
7 | maximum working pressure | 0.25MPa |
8* | Inner chamber safety valve opening pressure | 0.28MPa |
9 | Jacketed safety valve opening pressure | 0.28 MPa |
10 | Inner chamber hydrostatic test pressure | 0.39MPa |
11 | Jacket test pressure | 0.5 MPa |
12 | Temperature display accuracy | 0.1℃ |
13 | Pressure display accuracy | 0.1KPa |
14 | Sterilization temperature temperature control accuracy | ±02℃ |
15 | temperature uniformity | ±1℃ |
16* | pulsating mode | Multiple negative pressure pulsations + one trans-pressure pulsation + multiple positive pressure pulsations |
17* | Negative pressure pulsation vacuum amplitude and times | Amplitude -80~0KPa, times 1~99 |
18* | number of pulses across pressure | Amplitude -80~80KPa, times 1 |
19 | Number of positive pressure pulses | 1~3 |
20* | flash vacuum drying | The weight gain of fabrics after sterilization and drying shall not exceed 0.6% (1% higher than the national standard), and the weight gain of utensils shall not exceed 0.1% after drying. |
21 | Ultimate vacuum | -96 KPa |
22 | Vacuum leak rate | ≤0.13KPa/min |
